A resistor box is an electrical apparatus that provides precisely adjustable resistance values, typically built from high-stability resistance elements (wirewound or alloy) and offering stepped resistance adjustment via switches, knobs or plug-in connections. It delivers high accuracy, stability and thermal performance for any test or control system requiring strict resistance control. Resistor boxes are widely used in electrical / electronic laboratories, metrology and certification organizations, industrial automation and power-equipment testing — including circuit analysis and parameter verification in research and education; load simulation for power supplies, motors and inverters; commissioning and calibration in industrial control cabinets; testing and maintenance of new-energy systems (energy storage, solar PV, EV charging); calibration and verification of measurement instruments.
主要特性
High-Precision Adjustment
- Clear stepped resistance values with fine adjustment
- Meets precision-test requirements
Strong Stability
- Premium resistance materials with low temperature drift
- Stable over long-term use
High-Power Handling
- Supports high-power load applications
- Suitable for harsh industrial environments
Excellent Thermal Design
- Optimized structure and ventilation
- Reliable long-duration operation
Easy Operation
- Ergonomic knob / switch design
- Intuitive and efficient adjustment
Customization Support
- Flexible customization to customer requirements
- Different resistance ranges, power ratings and form factors
应用领域
典型应用

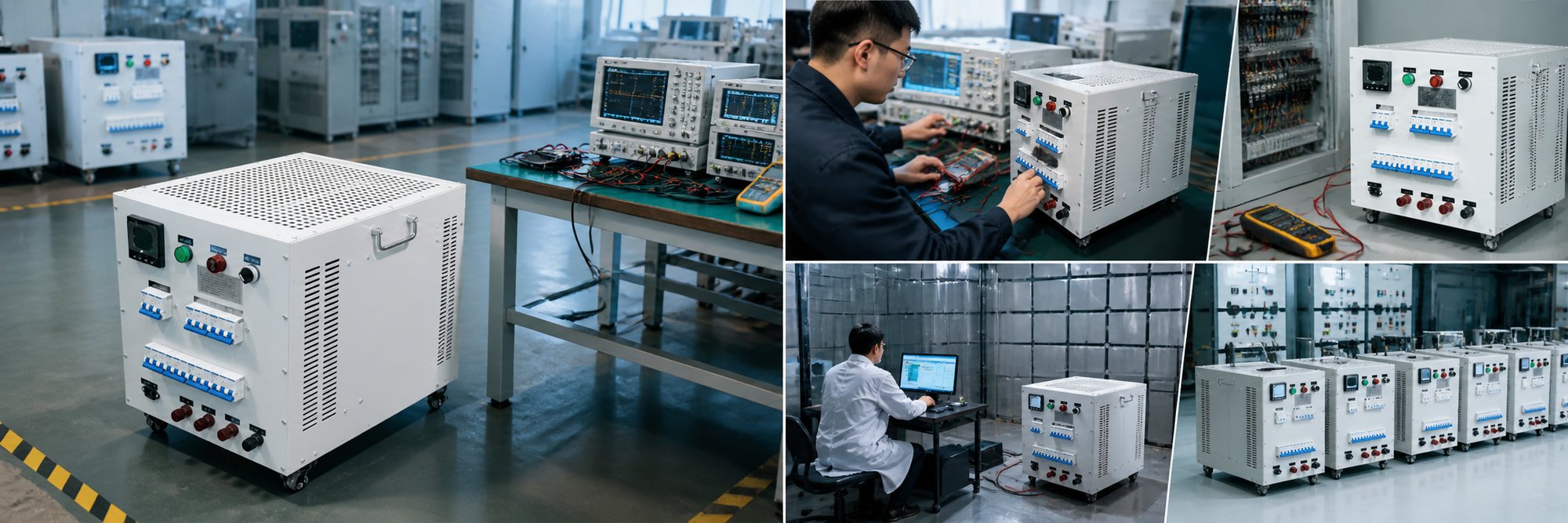

Lab Teaching / Research
Load Simulation Test
Industrial Control Commissioning
New-Energy System Testing
Power Equipment Testing
Instrument Calibration
Resistor Boxes 型号对比
本系列各型号的并排规格对比 — 功率范围、阻值范围、精度、工作温度与典型应用。
| 规格项 | CustomLoad Box | CustomResistor Box | CustomResistor Box | CustomResistor Box | CustomResistor Cabinet |
|---|---|---|---|---|---|
| 产品名称 | three-phase adjustable Load Box / High-Power Test Cabinet (adjustable Load Box) | three-phase adjustable Load Box / High-Power Test Cabinet (adjustable Load Box) | three-phase adjustable Load Box / High-Power Test Cabinet (adjustable Load Box) | three-phase adjustable Load Box / High-Power Test Cabinet (adjustable Load Box) | three-phase adjustable Load Box / High-Power Test Cabinet (adjustable Load Box) |
| LoadClass Type | resistive load / discharge load / adjustable load (single or combined) | resistive load / discharge load / adjustable load (single or combined) | resistive load / discharge load / adjustable load (single or combined) | resistive load / discharge load / adjustable load (single or combined) | resistive load / discharge load / adjustable load (single or combined) |
| 功率模式 | three-phase adjustable · AC/DC dual input available | three-phase adjustable · AC/DC dual input available | three-phase adjustable · AC/DC dual input available | three-phase adjustable · AC/DC dual input available | three-phase adjustable · AC/DC dual input available |
| 功率范围 | 1kW / 2kW / 5kW / 10kW multi-rating selector switchcombined (customizable up to 100kW+) | 1kW / 2kW / 5kW / 10kW multi-rating selector switchcombined (customizable up to 100kW+) | 1kW / 2kW / 5kW / 10kW multi-rating selector switchcombined (customizable up to 100kW+) | 1kW / 2kW / 5kW / 10kW multi-rating selector switchcombined (customizable up to 100kW+) | 1kW / 2kW / 5kW / 10kW multi-rating selector switchcombined (customizable up to 100kW+) |
| safeprotection | Over-temperatureauto-off + mushroomHeademergency stopbutton + audio-visual alarmprompting | Over-temperatureauto-off + mushroomHeademergency stopbutton + audio-visual alarmprompting | Over-temperatureauto-off + mushroomHeademergency stopbutton + audio-visual alarmprompting | Over-temperatureauto-off + mushroomHeademergency stopbutton + audio-visual alarmprompting | Over-temperatureauto-off + mushroomHeademergency stopbutton + audio-visual alarmprompting |
| controlSquareStyle | Front panel physical buttons + digitaldisplayInstruments + multi-rating selector switch | Front panel physical buttons + digitaldisplayInstruments + multi-rating selector switch | Front panel physical buttons + digitaldisplayInstruments + multi-rating selector switch | Front panel physical buttons + digitaldisplayInstruments + multi-rating selector switch | Front panel physical buttons + digitaldisplayInstruments + multi-rating selector switch |
| 移动方形款 | Bottom universal casters, SinglePersoncan berolledinto position | Bottom universal casters, SinglePersoncan berolledinto position | Bottom universal casters, SinglePersoncan berolledinto position | Bottom universal casters, SinglePersoncan berolledinto position | Bottom universal casters, SinglePersoncan berolledinto position |
| 应用领域 | VFD braking · Battery discharge · PSU/UPS aging · Generator load testing · Laboratory | VFD braking · Battery discharge · PSU/UPS aging · Generator load testing · Laboratory | VFD braking · Battery discharge · PSU/UPS aging · Generator load testing · Laboratory | VFD braking · Battery discharge · PSU/UPS aging · Generator load testing · Laboratory | VFD braking · Battery discharge · PSU/UPS aging · Generator load testing · Laboratory |
| customization | Non-standard customization (power / voltage / resistance / comm. interface / cabinet dimensions) | Non-standard customization (power / voltage / resistance / comm. interface / cabinet dimensions) | Non-standard customization (power / voltage / resistance / comm. interface / cabinet dimensions) | Non-standard customization (power / voltage / resistance / comm. interface / cabinet dimensions) | Non-standard customization (power / voltage / resistance / comm. interface / cabinet dimensions) |
| Service & Support | Factory direct · Free 48h samples · Custom to drawing · 12-month warranty · Invoice supported | Factory direct · Free 48h samples · Custom to drawing · 12-month warranty · Invoice supported | Factory direct · Free 48h samples · Custom to drawing · 12-month warranty · Invoice supported | Factory direct · Free 48h samples · Custom to drawing · 12-month warranty · Invoice supported | Factory direct · Free 48h samples · Custom to drawing · 12-month warranty · Invoice supported |
| 核心亮点 | — | — | — | — | — |
| 散热设计 | — | — | — | — | — |
| outer enclosureProcess | — | — | — | — | — |
| Internal elements | — | — | — | — | — |
| Safety Label | — | — | — | — | — |
| 出厂测试 | — | — | — | — | — |
| 查看详情 | 查看详情 | 查看详情 | 查看详情 | 查看详情 | 查看详情 |
常见问题
贵司的电阻柜和负载箱可达多少 kW 额定？
标准柜体尺寸单台 5 kW 至 5 MW，多柜并联可达 20 MW 用于电网级发电机测试。电压等级 400 V、690 V、6.6 kV、11 kV、33 kV。阻值按您的测试规程（连续、阶跃、斜坡）定制。标准尺寸矩阵见 /products/resistor-box。
有哪些端子类型和接线方式可选？
电阻柜可配铜母排（M10/M12 螺柱）用于固定安装，或绝缘 Cam-Lok（J 系列，每相 400 A）用于便携测试设备。双母排可达更高电流（连续 1500 A）。端子按 IEC 60446 色标（棕/黑/灰 + 黄绿接地）。室外使用可选 NEMA 3R 防风雨端子箱。
电阻柜是否适合户外或船用环境？
标准柜为 IP23（室内防护）。户外使用可选 IP54 百叶柜（防雨防尘）和 IP65 全密封内置热交换器。船用级采用 316 不锈钢外壳与环氧涂层端子，按 IEC 60068-2-52 通过盐雾测试。工作温度环境 −40°C 至 +55°C；可选热带防护（TH）涂层。
电阻柜可以有多个抽头或可编程阻值步进吗？
可以 —— 常见配置包括手动选择开关（5–10 个固定抽头）、电动接触器组（2–256 个二进制编码步进，通过 Modbus RTU 或 Ethernet/IP）、以及伺服驱动滑片连续可变。十进制盒式样带 0.1 Ω 分辨率至 1 MΩ 也可供实验室计量使用。告知您的控制接口和步进分辨率以获取定制报价。
全定制电阻柜的交期是多久？
典型交期 6–10 周：1 周工程评审和 CAD 确认，4–6 周钣金加工、电阻元件组装和接线，1 周高压、负载测试和老化，加 1–2 周海运。50 kW 以下项目可加急 4 周交付（加价）。发邮件至 info@resistor-factory.cn 附单线图和目标交货日期获取报价。
