Load Box
Factory Direct · three-phase adjustable load Box / High-Power Test Cabinet
Over-temperature + emergency stopdual protection · multi-rating adjustable · resistive / discharge / adjustablethreeClassLoad — source factory · custom to requirements

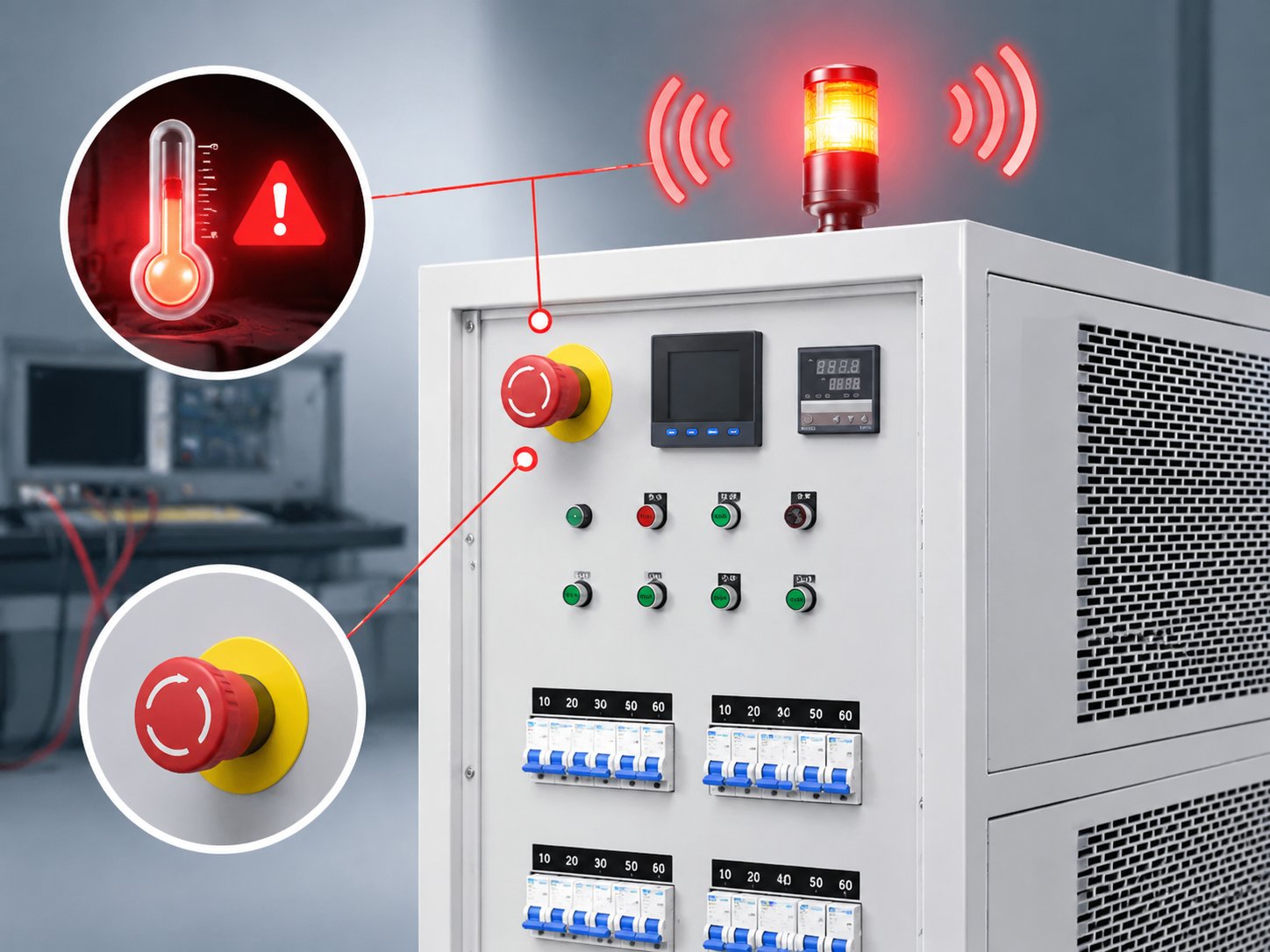

Over-temperatureprotection + emergency stopprotection — proactive safety safeguardtest site
The resistor load box hasover-heat protection function: when temperature exceeds the limit, the load is automatically disconnected / discharge is terminated and an audio-visual alarm is triggered, prompting the user to inspect the site. Front panel includes an independentmushroomHeademergency stopbutton, pressing itcan beinstantlycuts the circuit, operates indifferentoftenconditionsFirstOneTimeprotectioncoatedMeasureequipmentandOperateOperationPersonMembersafe.

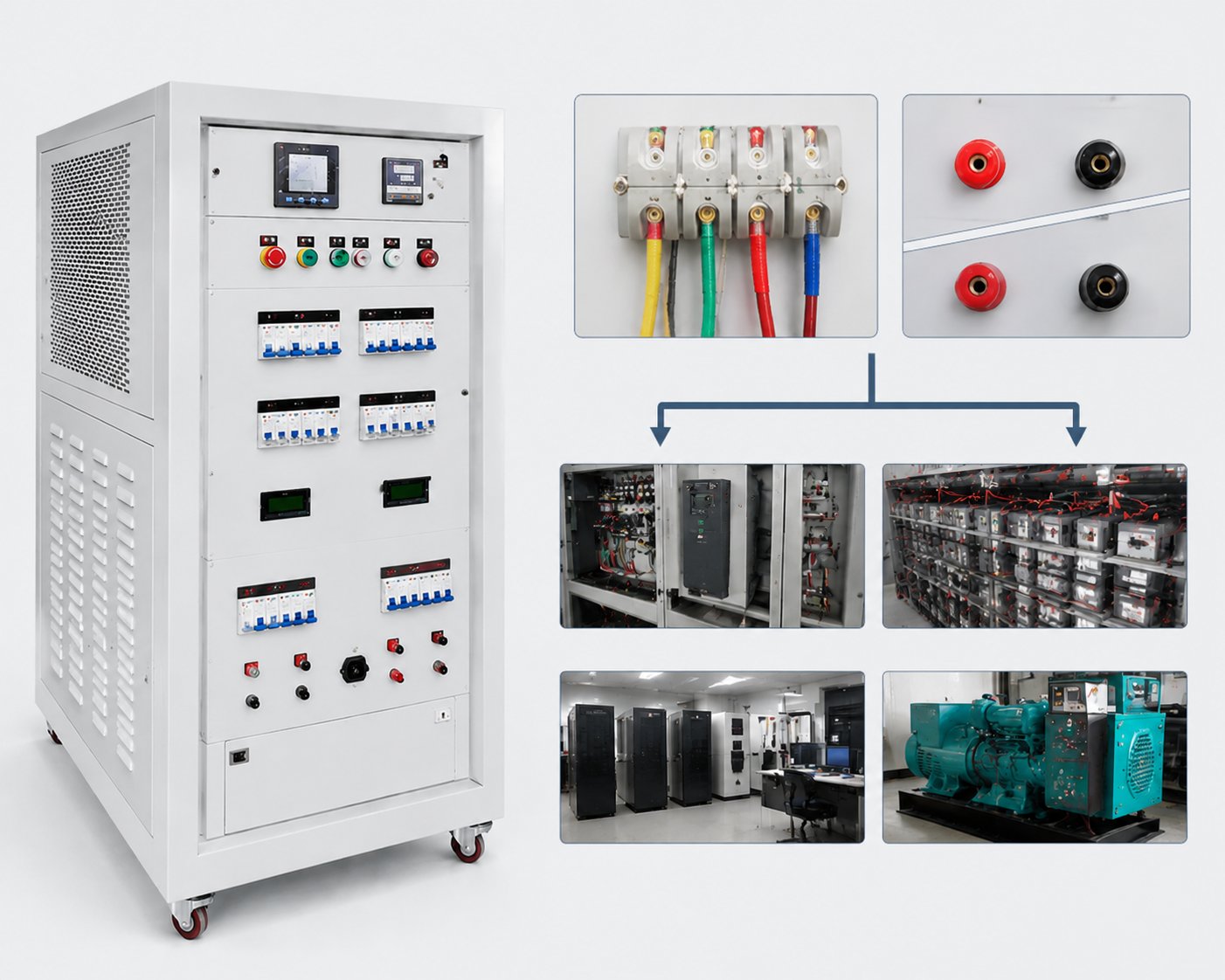

three-phase adjustable · AC/DCadjustable — single unit covers multiple test scenarios
Supports both three-phase adjustable andAC/DC dual-input versions, Power range is switched via multi-rating selector switch combinations (1kW / 2kW / 5kW / 10kW and other multi-rating options) , covering inverter braking / batterydischarge / power supply / UPS aging / generatorswithLoadetcmultiClassload testingneeds; Front panelinternalPlaceNumberShowInstruments, Voltage / current / Power / TemperatureRealHourAvailableSight.

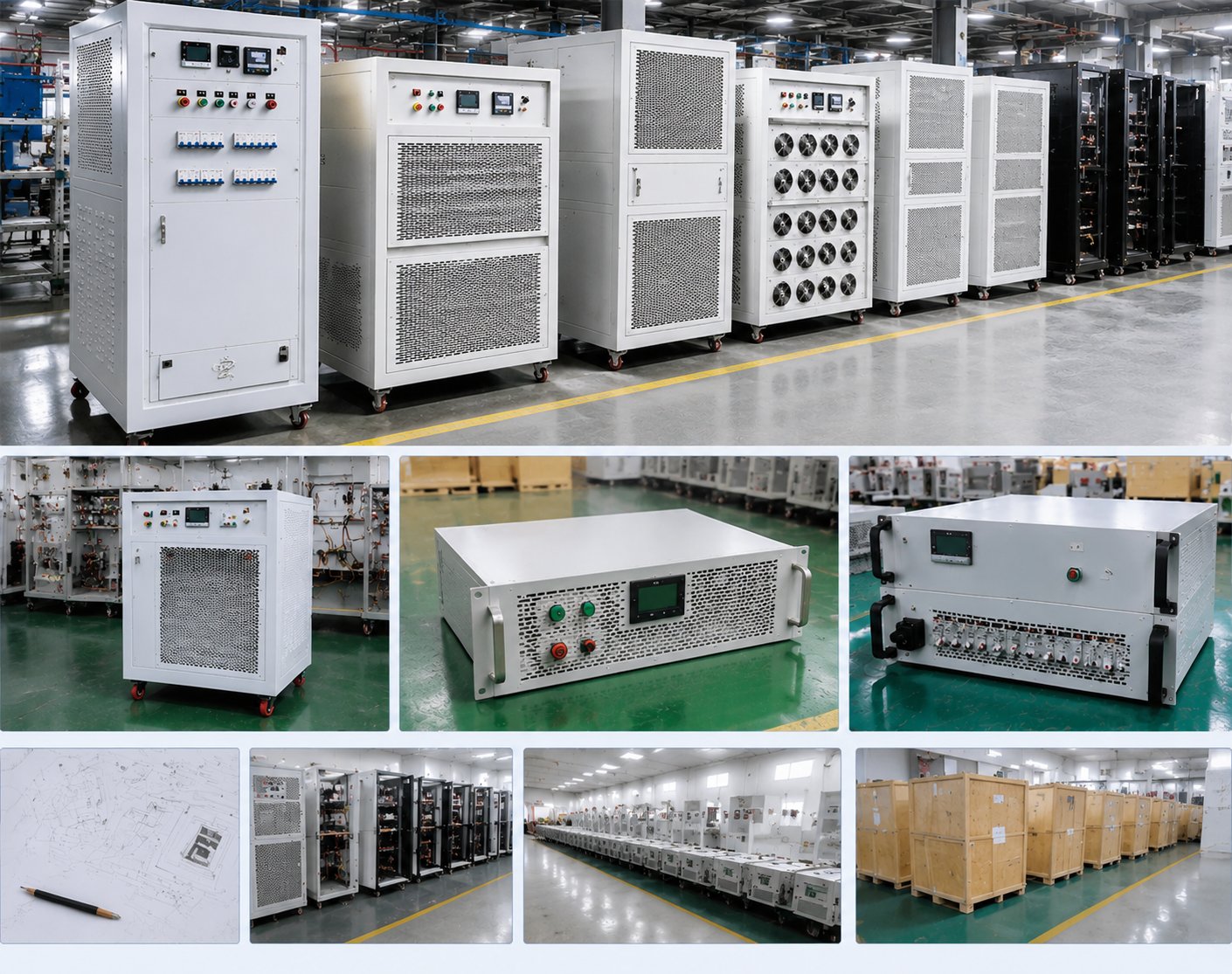

source factory · custom to requirements — resistive / discharge / adjustablethreeClassLoadsuit all scenarios
Factory supports custom non-standard parts: resistive load / discharge load / adjustable load — three load types meet all needs in one stop; single unit powerfrom 1kW to 100kW, whole cabinet parallel up to MW classclass. providescustom-to-drawing / whole cabinetLinkedTest / full poweragingetcfactory shippedBeforeFlowProcess; 48 smallHourinternalOutTechniqueTechniqueSquarecase.
Basic Parameters
| Parameter | Specification |
|---|---|
| Name | three-phase adjustable Load Box / High-Power Test Cabinet (adjustable Load Box) |
| LoadClass Type Load Type | resistive (Resistive) / discharge (Discharge) / adjustable (adjustable) |
| Power Mode Power Mode | three-phase 380V · AC/DC dual input (per orderApproximatelyDetermine) |
| Power Range Power Range | 1kW / 2kW / 5kW / 10kW multi-rating selector switch, AvailablecombinedUntil 100kW+ |
| safeprotection Protection | Over-temperatureauto-off · emergency stopbutton · audio-visual alarm |
| controlSquareStyle Control | Front panelbuttons + digitalInstruments + multi-rating selector switch |
| Applications Applications | VFD braking · Battery discharge · PSU/UPS aging · Generator load testing · Laboratory |
| customization customization | Non-standard customization (power / voltage / resistance / comm. interface / cabinet dimensions) |
